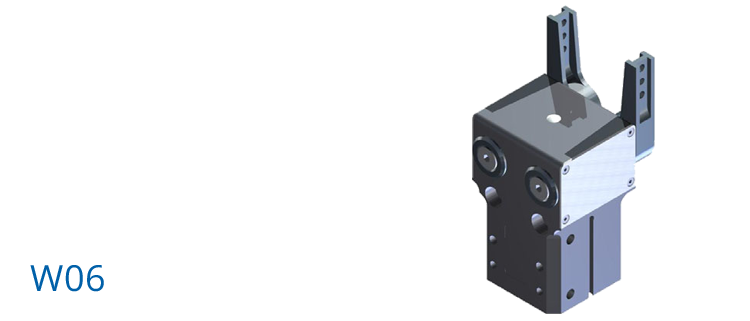

Sealed 180° Angular Gripper | Design W06

Characteristics

• high grip forces
• short cycle time
• completely sealed mechanics
• user defined installation position
• maintenance free up to 10 million movements
• compact design
• modular design
• multiple position checks through proximity switches (optional)
• built-in end position damping when opening

The required air pressure p _req at a parallel and closed finger position can be determined by means of the given torque M [Nm] with the following formula: 0,5 bar ≤ p _req = M bar / 30 Nm ≤ 6 bar

Technical Datasheet
Spare Part List W106
Spare Part List W206
Operating Instructions

For planners: Step files of the W06 are available on

Finger Movement A

Finger Movement I
