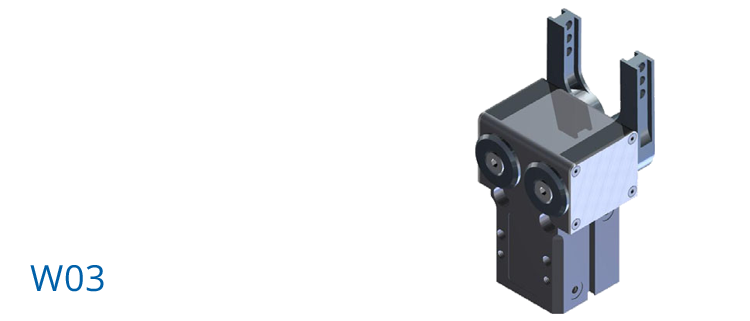

Sealed 180° Angular Gripper | Design W03

Characteristics

• high grip forces
• short cycle time
• completely sealed mechanics
• user defined installation position
• maintenance free up to 10 million movements
• compact design
• modular design
• multiple position checks through proximity switches (optional)
• built-in end position damping when opening

The required air pressure p _req at a parallel and closed finger position can be determined by means of the given torque M [Nm] with the following formula: 0,5 bar ≤ p _req = M bar / 1,25 Nm ≤ 6 bar
