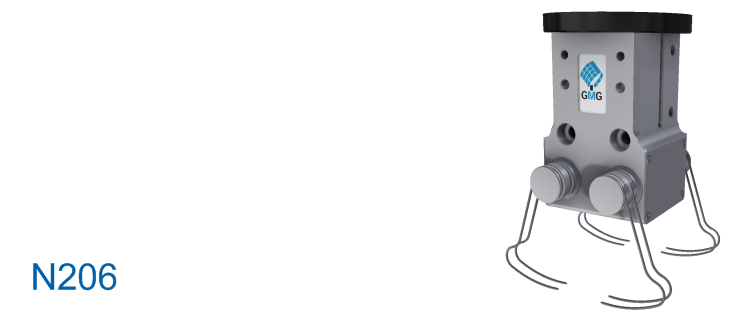

Sealed Needle Gripper | Design N206
Characteristics
- ideal for gripping soft or irregularly shaped products such as meat or pastries
- radial needle movement
- spring-loaded needles
- short cycle time
- completely sealed mechanics
- user defined installation position
- maintenance free up to 10 million movements
- compact design
- modular design
- multiple position checks through proximity switches (optional)
- number of needles and length of needle shaft customizable
- optional stripper plate for products pierced by needles (e.g. bakery products)
- customized needles available on request
The required air pressure p req at a parallel and closed finger position can be determined by means of the given torque M [Nm] with the following formula: 0,5 bar ≤ p req = M bar / 30 Nm ≤ 6 bar
